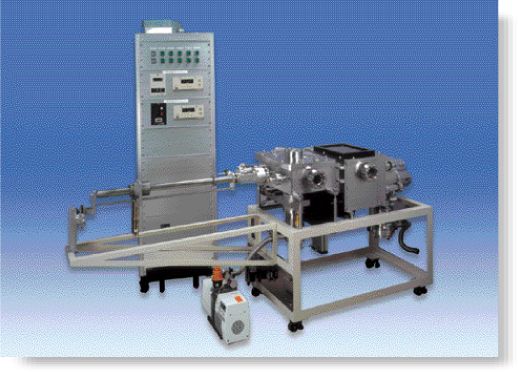

■ FED Evaluation Equipment
●Features
■ This is a Total Inspection System for FED Phosphor Panel that has been developed to inspect the Radiation Characteristics of Phosphor Panel used in Field Emission Display.
  This measures the Radiation Characteristics of Phosphor Panel by radiating the Phosphor with the irradiation of Electron Beam on the FED Phosphor Panel in a vacuum chamber. This equipment meets all the requirements that are needed for the development of FED Phosphor Panel, and for the inspection during mass production.
